CY Tinned Copper Braid Screen Control Wire

Hesheng Cable specializes in the production of CY cables, a type of high-quality shielded cable designed for use in industrial applications. CY Wires feature a flexible copper conductor and a PVC insulation with a braided copper wire shield, providing excellent resistance to interference and noise, Hesheng Cable's CY cables are known for their reliability and durability in harsh industrial environments, making them suitable for use in control and data transmission systems, automation technology, and machinery manufacturing. The company's commitment to quality and strict adherence to international standards ensure that their CY cables meet the highest industry requirements for performance and safety, With a focus on innovation and customer satisfaction, Hesheng Cable is a trusted supplier of CY cables, delivering superior products to meet the diverse needs of industrial clients worldwide

    Contact us
    Product Detail

    product detail

    Application and Description

    CY Screened cable is designed for use as a connecting, measuring, signaling, and control cable in machine tool manufacturing, plant engineering, and assembly lines to comply with stringent safety standards. It is suitable for both fixed installations and flexible applications that allow unrestricted mobility without enforced movement control or exposure to tensile stress. Installation is permitted in dry and humid environments; outdoor installation is prohibited. These copper-screened cables are optimally suited for interference-free data and signal transmission in measurement and control technology.



    Standard

    BS6500, VDE0250

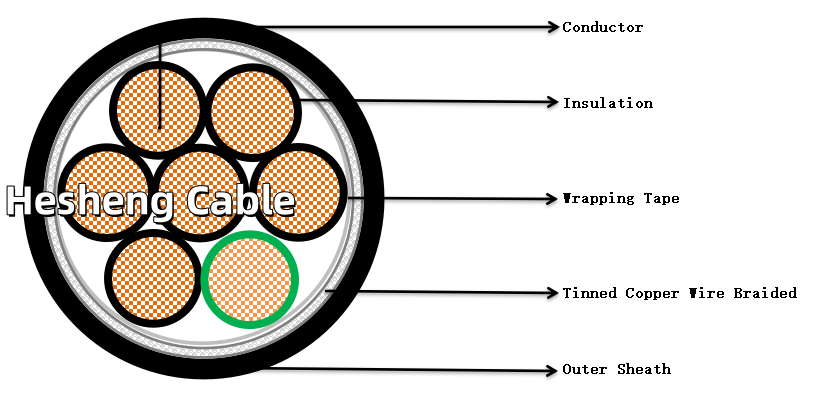

    Structure chart of CY Wire CY Cable Construction
    Structure chart of CY Tinned Copper Wire Screen Control Wire-Hesheng Cable.png

    - Plain copper conductor

    - Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5

    - PVC core insulation type Y12

    - Color coded to VDE-0293-308

    - Green-yellow grounding (3 conductors and above)

    - Plastic binder tape

    - Tinned Copper Wire Braid Screen

    - PVC outer jacket type Y12



    Specification of CY Wire



    Cable Parameter
    AWG No. of Cores x Nominal Cross Sectional Area # x mm2 Nominal Overall Diameter mm Nominal Cable Weight kg/km
    20(16/32) 2 x 0.50 5.6 47
    18(24/32) 2 x 0.75 6.2 56
    17(32/32) 2 x 1.00 6.4 62
    16(30/30) 2 x 1.50 7 72
    14(30/50) 2 x 2.50 8.2 106
    20(16/32) 3 x 0.50 6 55
    18(24/32) 3 x 0.75 6.5 67
    17(32/32) 3 x 1.00 6.7 75
    16(30/30) 3 x 1.50 7.7 102.1
    14(30/50) 3 x 2.50 8.8 142
    20(16/32) 4 x 0.50 6.5 65
    18(24/32) 4 x 0.75 7 79
    17(32/32) 4 x 1.00 7.2 91
    16(30/30) 4 x 1.50 8.4 125.3
    14(30/50) 4 x 2.50 9.6 175
    12(56/28) 4 x 4.00 11.3 238
    10(84/28) 4 x 6.00 13 341
    8(80/26) 4 x 10.00 16.3 504
    6(128/26) 4 x 16.00 19.4 773
    4(200/26) 4 x 25.00 20.4 1422
    20(16/32) 5 x 0.50 6.9 78
    18(24/32) 5 x 0.75 7.5 93
    17(32/32) 5 x 1.00 7.8 107
    16(30/30) 5 x 1.50 8.6 127
    20(16/32) 2 x 0.50 5.6 47
    18(24/32) 2 x 0.75 6.2 56
    17(32/32) 2 x 1.00 6.4 62
    16(30/30) 2 x 1.50 7 72
    14(30/50) 2 x 2.50 8.2 106
    20(16/32) 3 x 0.50 6 55
    18(24/32) 3 x 0.75 6.5 67
    17(32/32) 3 x 1.00 6.7 75
    16(30/30) 3 x 1.50 7.7 102.1
    14(30/50) 3 x 2.50 8.8 142
    20(16/32) 4 x 0.50 6.5 65
    18(24/32) 4 x 0.75 7 79
    17(32/32) 4 x 1.00 7.2 91
    16(30/30) 4 x 1.50 8.4 125.3
    14(30/50) 4 x 2.50 9.6 175
    12(56/28) 4 x 4.00 11.3 238
    10(84/28) 4 x 6.00 13 341
    8(80/26) 4 x 10.00 16.3 504
    6(128/26) 4 x 16.00 19.4 773
    4(200/26) 4 x 25.00 20.4 1422
    20(16/32) 5 x 0.50 6.9 78
    18(24/32) 5 x 0.75 7.5 93
    17(32/32) 5 x 1.00 7.8 107
    16(30/30) 5 x 1.50 8.6 127
