ICEA standard Three Cores EPR insulated Cables MV105

Application

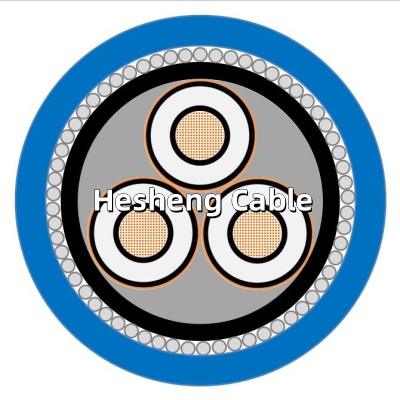

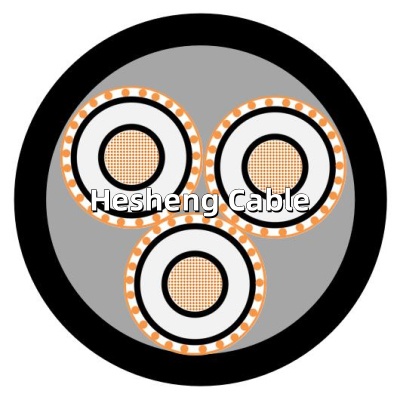

The three core cables distribute electrical power at voltages from 5KV to 46KV and a frequency of 50Hz. Three-core cables are made of copper or aluminium wires, surrounded by a triple-layer insulating system. There are several metallic shield designs, including copper tape, copper wire, concentric neutral, corrugated copper tape and metal sheath. These are surrounded with fillers, grounding conductor, binder tape and PVC, LSZH or PE jacket.

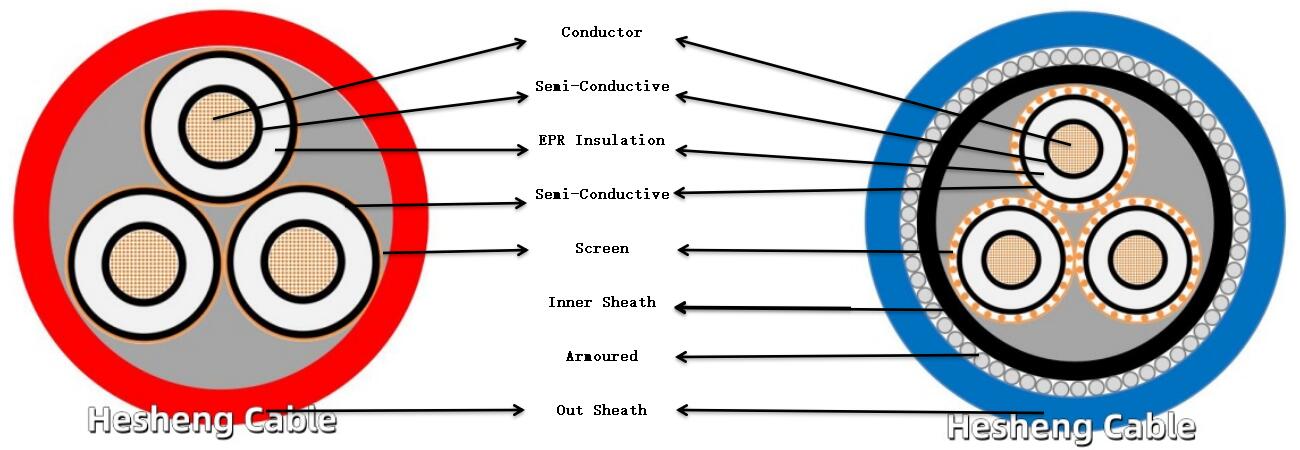

Conductor:

The conductor is made of aluminium or copper and meets the ASTM B3 standard.

Insulation:

The insulation is extruded over the conductor. High dielectric strength tree retardant XLPE is available as an option.
100% or 133% insulation is available upon request.

Insulation Shield

The insulation shield is a thermosetting compound that sticks to the insulation and keeps it strong while making it easy to remove.

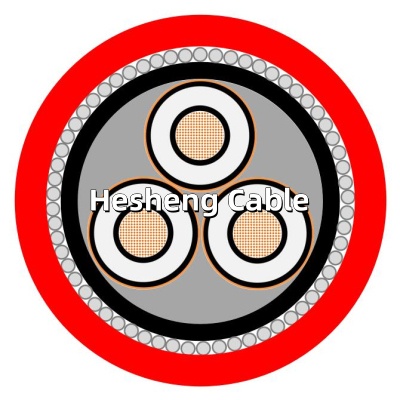

Armored

The binder type is covered with an inner PVC jacket. Aluminium armour is added over the inner jacket.

Jacket

A protective sunlight and ozone resistant jacket of PVC is extruded for a tight fit over the welded armour or the core assembly.

-EPR insulation
-Compact stranded conductor
-Super smooth conductor shield
-Zero or one grounding conductor
-CPE, LLLPE, LSOH or low temperature PVC jacket
-Oil resistant jacket

EPR INSULATED CABLES MV-105
